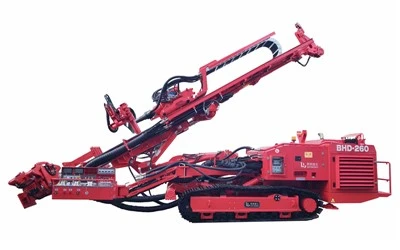

Diesel Anchor Drilling Rig
Yam khoom: BHD-260
Khoom npe: Diesel thauj tog rau nkoj drilling rig
Hom Lub Npe: BEALONG
Cav: F4HGE613C*V001
Customization Muaj
MOQ: 1
Hauj lwm lawm
Khoom Taw Qhia
Lub diesel thauj tog rau nkoj drilling rig yog nruab nrog lub cav uas ua raws li EU theem V emission qauv. Optimized tsim ntawm drilling rig tsis ua rau ntau dua drilling efficiency. Lub oscillating thiab qhov siab - kho tau lub lag luam platform ua rau nws yooj yim dua rau cov neeg ua haujlwm ua haujlwm. Lub hauv ntej thiab nram qab hydraulic outriggers ua rau lub lag luam ntawm lub drilling rig ruaj khov thiab muaj kev nyab xeeb dua. Cov thav duab txuas ntxiv txuas ntxiv, laum yeeb nkab lub thawv thiab tsis siv neeg ncej loading mechanism tau txo qhov kev siv zog ntawm cov neeg ua haujlwm.
Technical Specifications
|
Cav Qauv No. |
F4HGE613C*V001 |
|
Emission theem |
Theem V |
|
Rated zog (kW) |
191 kW / @ 2200 rpm |
|
Kab ntsig Band Hom 1 No. |
LG-154 |
|
Lub cev muaj zog |
Ob - ceev |
|
Tramming ceev (km / h) |
1.5/2.3 |
|
Hauv av siab (N / cm2) |
7.4 |
|
Gradeability (zeeg) |
25 |
|
Kev sib hloov ceev (r / min) |
0~100 0~50 |
|
Torque ntau ntawm cov iav siab (Nm) |
9900 |
|
Torque ntau ntawm cov iav qis (Nm) |
17000 |
|
Ua haujlwm cuam tshuam (Nm) |
1180 |
|
Percussion zaus (min ') |
1250 |
|
Feed stroke (mm) |
4500/6000 |
|
Pub zog (kN) |
100 |
|
Retraction quab yuam (kN) |
100 |
|
Pub tus nqi (m / min) |
0~12 0~65 |
|
Retraction tus nqi (m / min) |
0~12 0~65 |
|
Qauv |
Lub cev muaj zog + Gearbox + Chain |
|
Clamp ntau yam (mm) |
60~219/89~299 |
|
Qhov siab tshaj txoj kab uas hla (mm) |
300 |
|
Qhov Loj (mm) |
9050*2290*3085 |
|
Qhov hnyav (T) |
20 |
Khoom Paub meej
Cov yam ntxwv tseem ceeb
High -Drilling Peev Xwm:
Nrog rau qhov tseem ceeb tsis zoo los ntawm kev simulation-raws li kev tsim, lub zog, hydraulic, thiab drilling tshuab ua tiav qhov tshwj xeeb ntawm kev sib koom ua ke. Qhov no ua rau muaj kev sib raug zoo nrog ntau yam txheej txheem-xws li thauj tog rau nkoj / cable drilling, DTH (down-lub-Qhov) rauj drilling, casing- ua raws li drilling, micropile pilot qhov drilling, thiab siab - siab dav hlau grouting hauv ob qho tib si stratification.
Ergonomic Control System:
Lub console tswj ntawm lub diesel thauj tog rau nkoj drilling rig nta ntau -siv pivoting thiab qhov siab hloov peev xwm. Qhov no tso cai rau tus neeg teb xov tooj hloov kho lawv txoj haujlwm ua haujlwm raws li lawv qhov siab thiab qhov chaw tshwj xeeb ntawm qhov chaw drilling, yog li ua kom muaj qhov tsis pom kev pom thiab txo cov neeg ua haujlwm qaug zog thaum lub sijhawm ua haujlwm ntev.
Stable Support System:
Nruab nrog nws tus kheej tswj tau hydraulic outriggers ntawm ob sab pem hauv ntej thiab nram qab, lub rig tso cai rau kev ywj pheej txuas ntxiv thiab theem ntawm txhua tus ceg. Qhov no ua rau lub tshuab lub cev tau nrawm nrawm-txawm tias nyob rau qhov chaw nqes los yog tsis sib xws-yog li lav qhov ruaj khov thiab ruaj khov ntawm cov rig thoob plaws hauv tag nrho cov txheej txheem drilling.
Automated Qws Handling:
Kev koom ua ke nrog lub tsheb thauj mus los, ib qho loj - lub peev xwm laum qws magazine, thiab ib tug tag nrho automated pas nrig- tuav mechanism, lub kaw lus cia li executes tag nrho cov sequence ntawm pas nrig cia, retrieval, alignment, thiab kev twb kev txuas. Qhov no tshem tawm qhov xav tau ntawm kev tuav tuav lossis lub cev sib txuas ntawm cov pas nrig los ntawm tus neeg teb xov tooj.
FAQ
Q: Ntev npaum li cas ntawm cov pas nrig tuaj yeem ua tus pas nrig tsis siv neeg -loading mechanism haum? Puas muaj kev pheej hmoo ntawm cov pas nrig jamming lossis misalignment teeb meem?
A: Thaum nruab nrog lub rooj sib txuas txuas ntxiv, lub kaw lus tuaj yeem ua raws li tus qauv kev xyaum ua haujlwm ntawm qhov ntev ntawm 3 mus rau 6 meters (ntau qhov tshwj xeeb kuj tuaj yeem kho raws li kev thov). Lub laum qws magazine nta ib qho ua tau - nyob rau hauv cov lus qhia thiab tso cov qauv, kom ntseeg tau tias qhov chaw raug qhov yuam kev tsawg dua 2 hli rau lub tshuab tsis siv neeg thauj khoom. Raws li kev ua haujlwm ib txwm muaj, tus nqi tsis ua haujlwm vim yog cov pas nrig jamming tsawg dua 0.1%, ua kom pom kev ntseeg tau tshwj xeeb.
Q: Ua li cas pem hauv ntej thiab nram qab hydraulic outriggers outperform txheem outriggers? Puas muaj kev pheej hmoo ntawm kev tsis ruaj khov thaum ua haujlwm ntawm qhov chaw siab tshaj?
A: Feem ntau cov txheej txheem drilling rigs feature outriggers tsuas yog nyob rau sab, ua rau muaj kev txwv tsis pub hneev taw thiab muaj peev xwm tsis zoo. Nyob rau hauv sib piv, lub rig no yog nruab nrog plaub hydraulic outriggers - positioned nyob rau hauv pem hauv ntej thiab nram qab -txhua yam uas yuav tsum tau ntawm nws tus kheej ncua los yog retracted. Qhov no tso cai rau lub tshuab lub cev kom nrawm nrawm hauv ib feeb, txawm nyob hauv av nrog qhov siab txog li 15 degrees. Kev txhawb nqa hneev taw yog 40% loj dua li ntawm tus qauv sab-mounted outriggers; yog li ntawd, lub tshuab lub cev pom zoo tsis muaj sway txawm tias thaum lub sij hawm siab -torque drilling ua haujlwm. Nws ua kom ruaj khov kev ua tau zoo ntawm qhov chaw siab tshaj thiab qhov tsis sib xws hauv roob siab, tshem tawm tag nrho cov kev pheej hmoo ntawm tipping.
